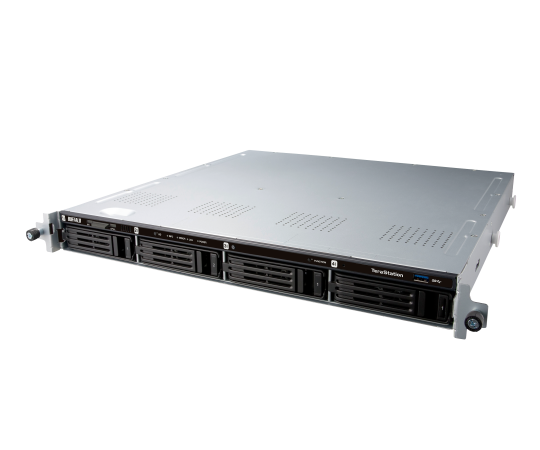

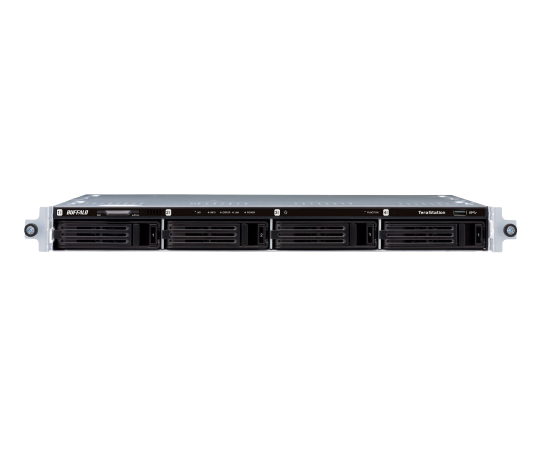

TeraStation™ 1400 Rackmount

4 bay Rackmount.

Product Data Sheet

TeraStation™ 1400 Rackmount

4 bay Rackmount.

CPU Speed

1.2GHz

RAM

DDR3 512MB

Number of Bays

Supported RAID Levels

JBOD, 0, 1, 5, 6, 10

Powerful CPU

Supported by the latest Marvell Armada dual-issue processor.

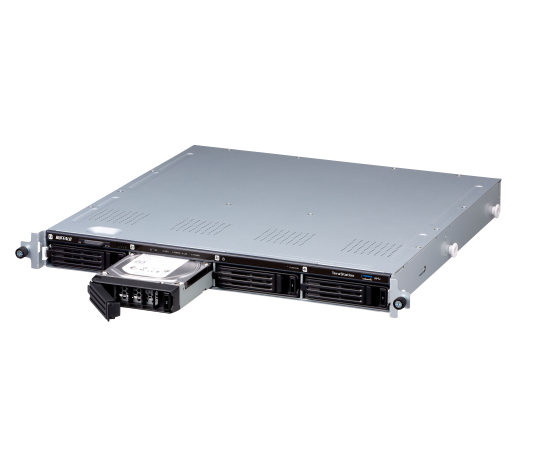

Hot-swap function increases data security

With the hot swap function, the TeraStation™ automatically switches off the defective hard disk even if one hard disk fails, so that it can be replaced safely without interrupting work or losing data.

Intuitive web management interface

The web interface has a dashboard that offers the user more effective views of system status, the ability to resize windows (even on the phone) and a more comfortable button layout.

Replication with TeraStation

By replication, a folder in two separate TeraStations™ is synchronized almost in real time. This only happens in one direction (not bi-directional) – from the source to the destination. This function can be set up in LAN and WAN. WAN setup includes remote connection via port forwarding and VPN setup.

DDR3 memory

Fast DDR3 memory.

Gigabit Ethernet connection

The integrated Ethernet connection with 10/100/1000 Mbit/s provides high-speed network connections.

Restricted network access

Set access restrictions at group and user level to protect your data.

Quick and easy installation

Our Buffalo devices are easy to install and configure using a simple web-based interface.

Hardware System

Form factor

Rackmount

CPU Type

Marvell ARMADA 370 ARM (Dual Issue)

CPU Speed

1.2GHz

RAM

DDR3 512MB

Drive Interface

SATA 3Gb/s

Installed OS

Linux

Internal Hard Drives

Number of Bays

Total Capacity

4TB, 8TB, 12TB, 16TB

Supported HDD Capacities

1TB, 2TB, 3TB, 4TB

LAN Interface

Connector Type

RJ-45

LAN Ports

Max Transmission Rate

10/100/1000 Mbps

USB Interface

Connector Type

USB Type A

USB 2.0 Ports

USB 3.0 Ports

Max Transmission Rate

Max: 480 Mb/s, Max: 5 Gb/s

Other

Client OS

Windows 10, Windows 8.1, Windows 8, Windows 7, Windows Vista, Windows XP, Windows Server 2012/2012 R2, Windows Server 2008/2008 R2, Windows Server 2003/R2, Windows Server 2000, Mac OS 10.4 - 10.9

Dimensions

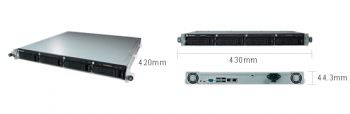

430 x 44.3 x 420 mm

Weight

9 Kg

Operating Environment

5-35°C, 20-80% (non-condensing)

Power Supply

External AC 100-240V, 50/60Hz

Power Consumption (max.)

40 Watts

Power Consumption (operation, typical)

Average 30 Watts

Power Management System

Yes

Software System

Supported RAID Levels

JBOD, 0, 1, 5, 6, 10

Hot Swap

Yes

Hot Spare

Protocol Support

Networking

TCP/IP

File Sharing

CIFS/SMB, AFP, NFS, HTTP/HTTPS, FTP, SFTP

Active Directory support

Yes

Active Directory Integration

LDAP

Management

HTTP/HTTPS

Time Synchronization

NTP

Backup

Replication

Yes

Apple Time Machine®

Yes

Backup Software

Built-in backup to USB storage or other Buffalo NAS based on rsync

Backup Software Licenses

11 licenses NovaBACKUP Buffalo Edition for Windows Clients: 1 server license, 10 PC licenses

Remote Access

Web UI

via HTTP/HTTPS

FTP Server

via FTP/SFTP

WebAccess

Yes

Product Part Numbers

Product Code

TS1400R0404-EU - 4TB, TS1400R0804-EU - 8TB, TS1400R1204-EU - 12TB, TS1400R1604-EU - 16TB

Note

1TB = 1, 000, 000, 000, 000Bytes. Actual data throughput will vary depending upon environment factor.
